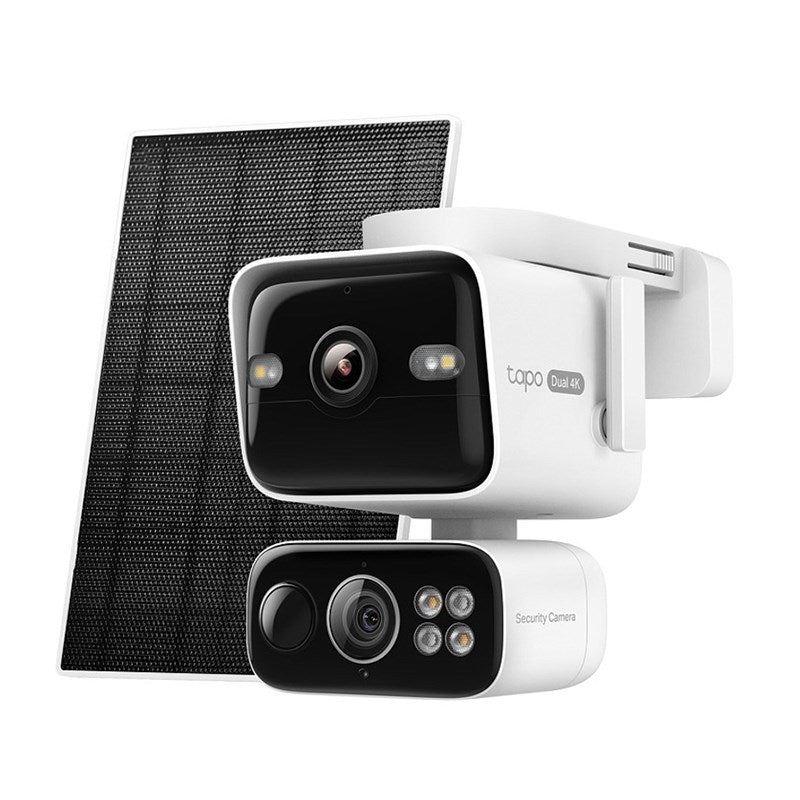

TP-Link Solar-Powered Dual-Lens Pan/Tilt Security Camera Kit 4K

TP-Link Solar-Powered Dual-Lens Pan/Tilt Security Camera Kit 4K

Reduce Blind Spots

A fixed wide-angle lens captures the full scene at all times, while the pan/tilt lens roams 360° horizontally to track and zoom in on activity in another area. Two perspectives, one device.

Lens 1: 169° Ultra-Wide Coverage

See more of your property at once with an expansive 169° field of view, keeping your front yard, back patio, and more in frame at all times.

Lens 2: 360° Auto-Tracking with Zoom

When motion is detected in the wide view, this lens instantly locks on and tracks the subject across 360°, keeping critical details in sharp focus as the action unfolds.

Set It Up Once. The Sun Handles the Rest

Just 90 minutes of sunlight recharges the camera for continuous power. The battery holds up to 3 months per charge, keeping your camera running through extended cloudy periods.

Vivid Color Even After Dark

Starlight color night vision delivers brighter, more detailed low-light imagery so facial features and vehicle details stay clearly visible after sunset.

Detect People, Vehicles & Pets Without a Subscription

On-device AI accurately identifies people, vehicles, and pets in real time, cutting down on false alerts and unnecessary notifications. No monthly fee required.

24/7 Continuous Capture

Never wonder what happened between motion alerts. Captures images at customizable 1–60 second intervals, with AI-extended detection reaching up to 60 ft beyond traditional PIR sensors.

Dual-Band Wi-Fi Connectivity

Supports both 5 GHz and 2.4 GHz Wi-Fi bands. Use 5 GHz for faster speeds closer to your router, or 2.4 GHz for broader range across your property.

Built to Last with Smart Deterrence

IP65-rated stands up to rain, dust, and snow for reliable year-round performance. Built-in Red and Blue warning lights and a siren actively deter intruders the moment motion is detected.

Key Features

• Reduce Blind Spots

• Set It Up Once.

• Vivid Color Even After Dark

• Detect People, Vehicles & Pets Without a Subscription

• 24/7 Continuous Capture

• Dual-Band Wi-Fi Connectivity

• Built to Last with Smart Deterrence

CAMERA

Image Sensor

1/2.7” CMOS Starlight Sensor

Lens

Fixed Lens

Focal Length: 2.53 mm

Aperture: F1.6

Field of View: 169.7° (Diagonal), 140.8° (Horizontal), 74.7° (Vertical)

Pan-Tilt Lens

Focal Length: 6.0 mm

Aperture: F1.6

Field of View: 66.5° (Diagonal), 57.3° (Horizontal), 31.0° (Vertical)

Night Vision

Fixed Lens

Infrared Night Vision ( 49.2 ft / 15 M)

Starlight Color Night Vision ( 52.5 ft / 16 M)

Pan-Tilt Lens

Infrared Night Vision (52.5+ ft / 16+ M)

Starlight Color Night) ( 52.5+ ft / 16+ M)

Night Mode

IR-Mode/ Full-Color Mode

Day/Night Switch

Yes

Lighting

4× 850 nm IR LED

4× white LED

2× Alarm LED ( blue & red )

1× Indicator LED

Interface & Button

4× 850 nm IR LED

4× white LED

2× Alarm LED (Blue & Red)

1× Indicator LED

Pan/Tilt Range

Pan Mechanical Range：339°（360° Pan Coverage）

Tilt Mechanical Range：97°（128° Tilt Coverage

SOLAR PANEL

Output

Solar Panel Max Charging Voltage: 5.1 V

Solar Panel Max Charging Power: 4.5 W

Output Port

Type-C

VIDEO & AUDIO

Maximum Resolution

Fixed Lens: 4K (3840 × 2160px)

Pan & Tilt Lens: 4K (3840 × 2160px)

Frame Rate

15fps

Digital Zoom

Fixed Lens: 18x

Pan & Tilt Lens: 18x

Audio Input & Output

Built-in Microphone and Speaker

Audio Communication

Two-Way Audio with Noise Cancellation

Siren Volume

87.1 dBA (Level measured at 10 cm distance)

68.6 dBA (Level measured at 300 cm distance)

STORAGE

Local Storage

MicroSD Card Slot on Camera (Up to 512 GB)

Cloud Storage

Tapo Care Cloud Storage Services (Subscription required)

DETECTION and NOTIFICATIONS

Sensor

Three Motion Sensors: PIR

One Ambient Light Sensor

AI Detection

Motion Detection

Person Detection

Pet Detection

Vehicle Detection

Activity Zones

Yes

Only works with Motion/Person/Pet/Vehicle Detection.

Output Notification

App Notifications of Camera Event

App Notification of AI Detection Event with Snapshot (Subscription Required)

NETWORK

Network Connectivity

Connect via Wi-Fi

Wireless Connectivity

IEEE 802.11b/g/n, 2.4GHz Wi-Fi

IEEE 802.11a/n, 5GHz Wi-Fi

Protocol

TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP

Ethernet Port

No

RTSP

No

ONVIF

No

SECURITY

Security

Local AI Detection

128-bit AES Encryption with SSL/TLS

WPA/WPA2-PSK/WPA3-PSK

POWER

Power Source

Built-in Rechargeable Lithium-ion Battery

Tapo A202 Solar Panel (Included)

Input Voltage

5V (DC)

Power Cord Length

Charging Cable Length: 0.5 M

Solar Panel Charging Cable Length: 0.48 M

Solar Panel Extension Charging Cable Length: 11.8 ft (3.6 M)

GENERAL

Smart Integration

Google Assistant, Amazon Alexa, IFTTT, Samsung SmartThings

Weather Resistance

IP65

System Requirements

Tapo App: iOS 12.0 or higher, Andriod 7.0 or higher

Mounting Options

Ceiling-Mounted

Wall-Mounted

Pole-Mounted (Pole-Mounting loops required but not included)

Operating Temperature

-20℃~45℃ (-4℉~113℉)

Storage Temperature

-40℃~60℃ (-40℉~140℉)

Operating Humidity

10%~90% RH, Non-condensing

Storage Humidity

0~90% RH, Non-condensing

Charging Temperature

0~45℃(32℉~113℉)

Certifications

FCC, DOE, CEC, WWA, IP65, CE, JRF, VCCI, RCM, KC, NTRA
