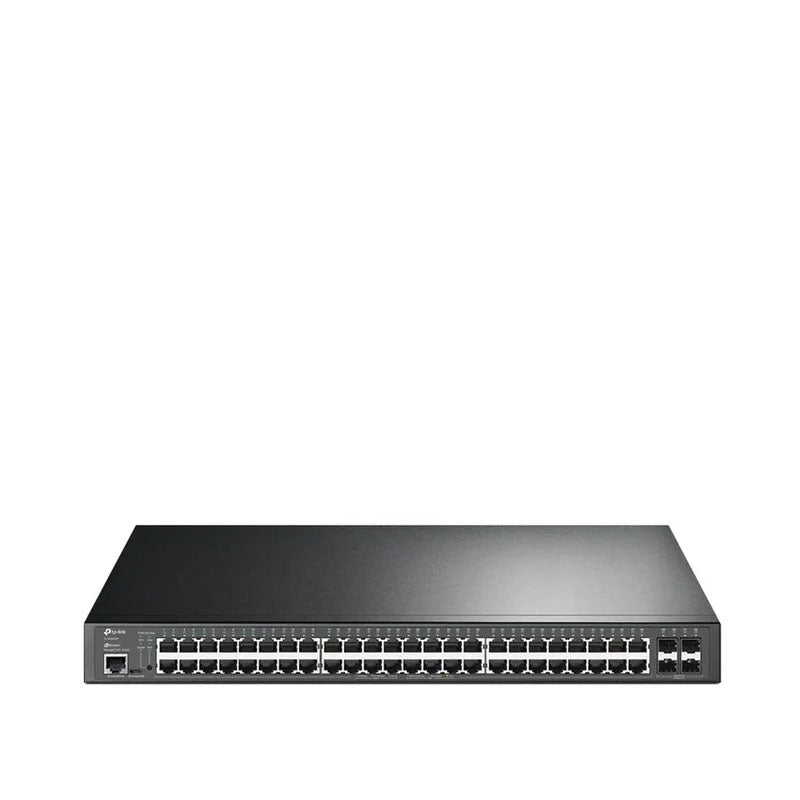

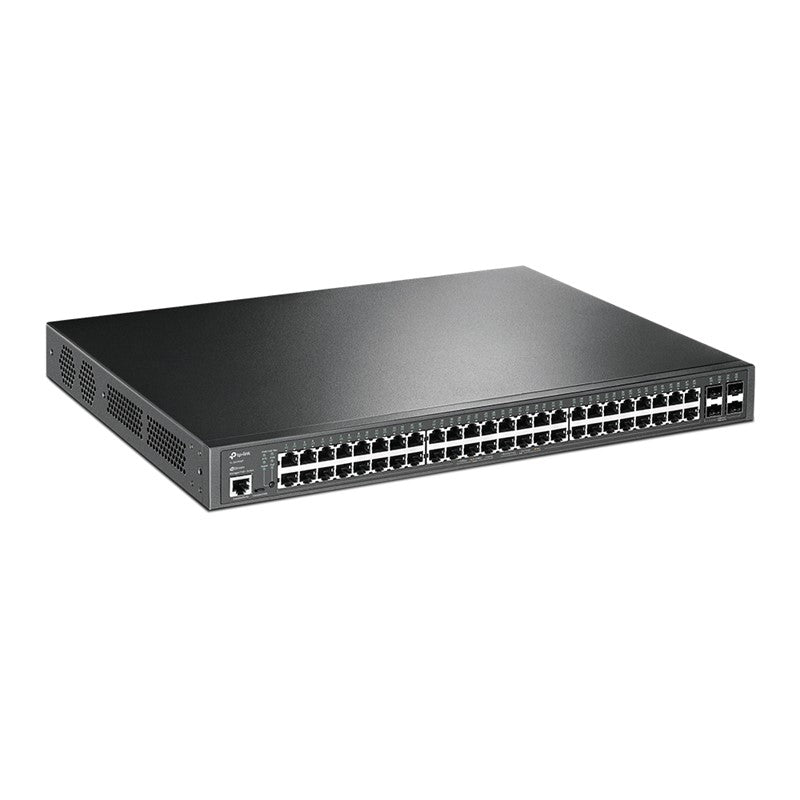

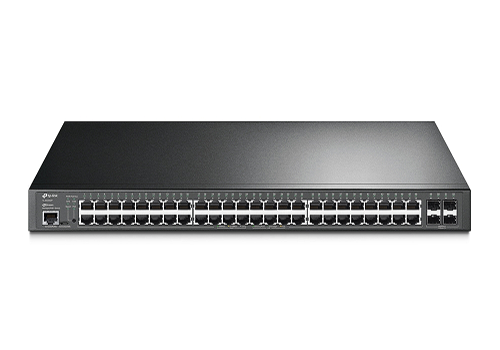

TP-Link TL-SG3452P JetStream 52-Port Gigabit L2 + Managed Switch With 48-Port PoE+

Static Routing

Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies

IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

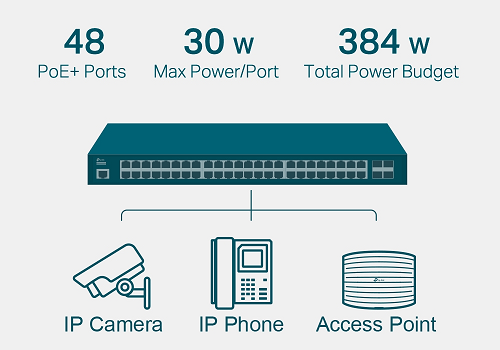

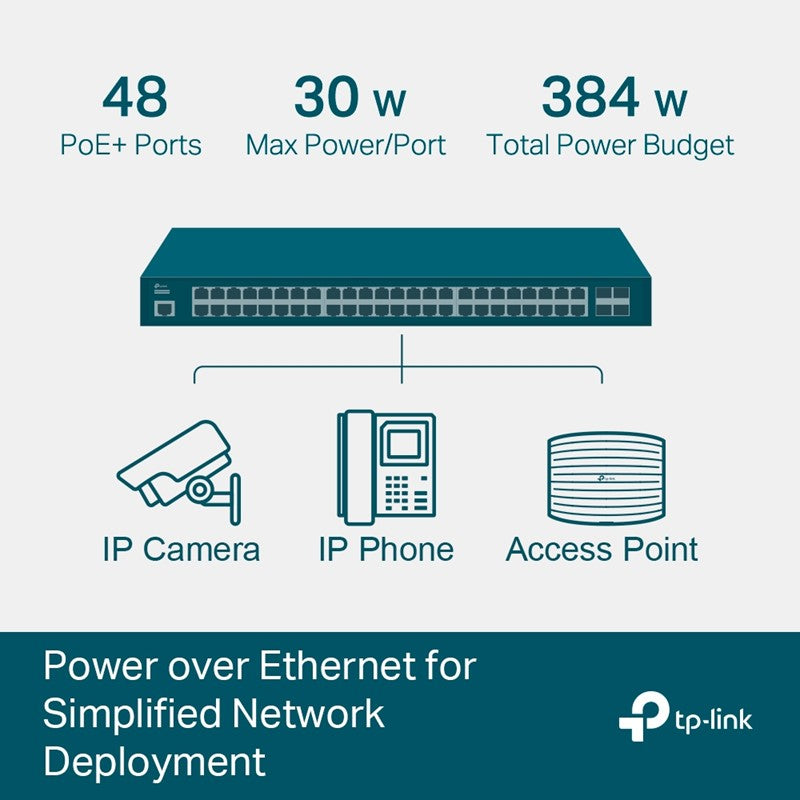

384 W PoE Budget

48× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W

Full Gigabit Ports

48× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.

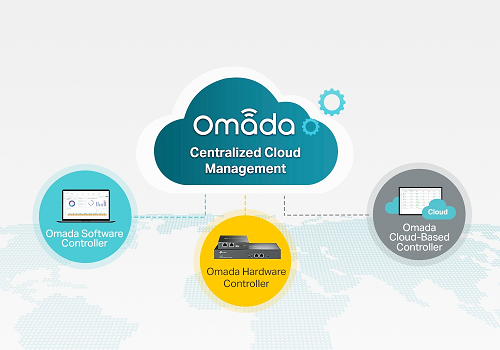

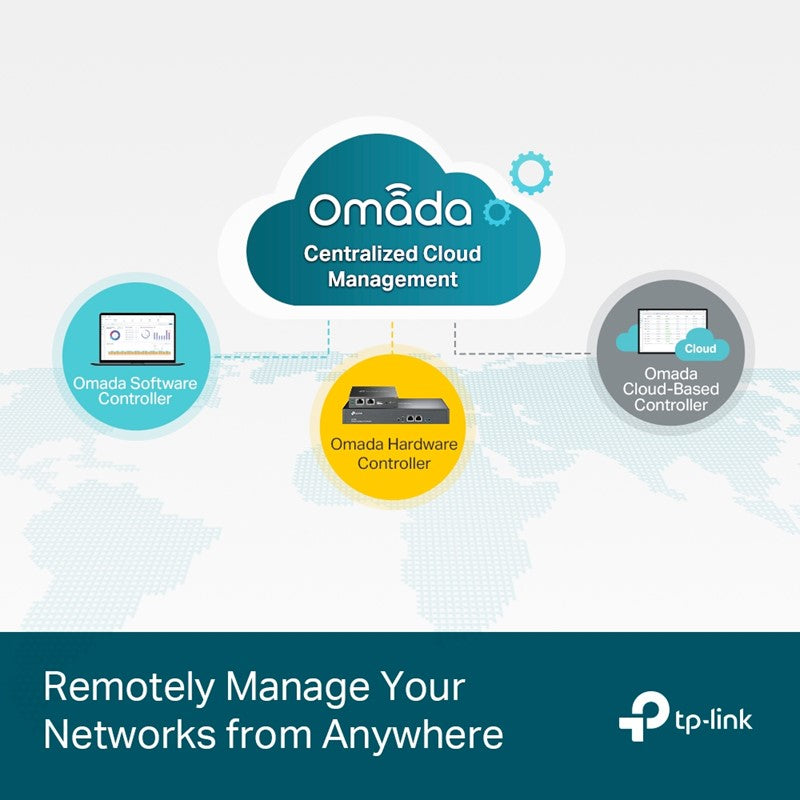

Integrated into Omada SDN

Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management

Cloud access and Omada app for ultra convenience and easy management.

Optimize Voice and Video Applications

L2/L3/L4 QoS and IGMP snooping.

Standalone Management

Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Interface

• 48× 10/100/1000 Mbps RJ45 Ports
• 4× Gigabit SFP Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port

Fan Quantity

3

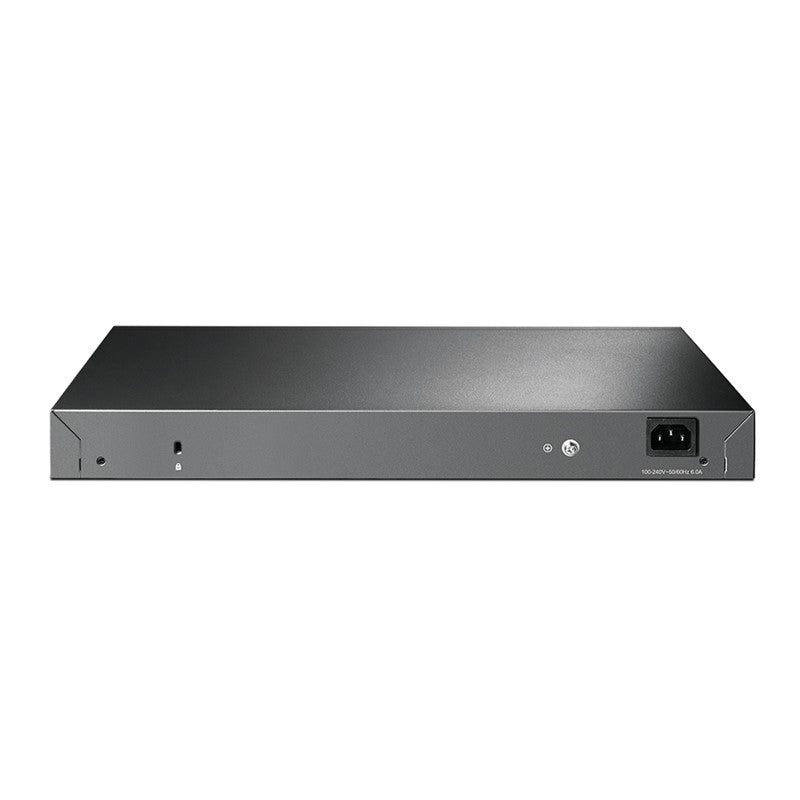

Power Supply

100-240 V AC~50/60 Hz

PoE+ Ports(RJ45)

• Standard: 802.3at/af compliant
• PoE+ Ports: 48 Ports, up to 30 W per port
• Power Budget: 384 W

PoE Ports (RJ45)

• Standard: 802.3at/af compliant
• PoE+ Ports: 48 Ports, up to 30 W per port
• PoE Power Budget: 384 W*

Dimensions ( W x D x H )

17.3 × 13.0 × 1.7 in.
(440 × 330 × 44 mm)

Mounting

Rack Mountable

Max Power Consumption

52.5 W (no PD connected)
485.4 W (110 V/60 Hz) (with 384 W PD connected)

Max Heat Dissipation

179.1 BTU/hr (110 V/60 Hz) (no PD connected)
1656.2 BTU/hr (110 V/60 Hz) (with 384 W PD connected)

Performance

Switching Capacity

104 Gbps

Packet Forwarding Rate

77.4 Mpps

MAC Address Table

16 K

Packet Buffer Memory

12 Mbit

Jumbo Frame

9 KB
