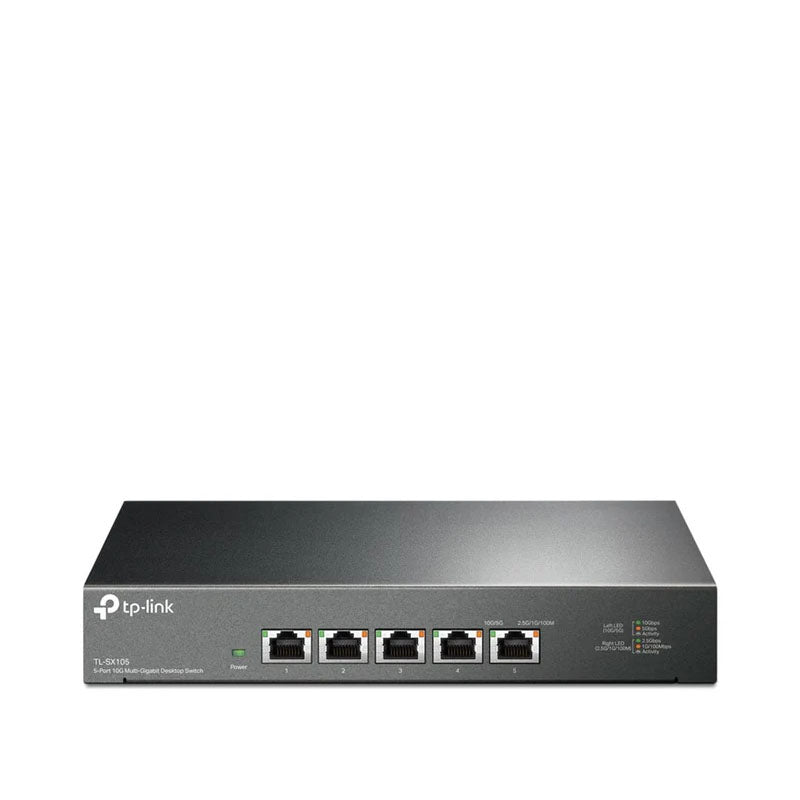

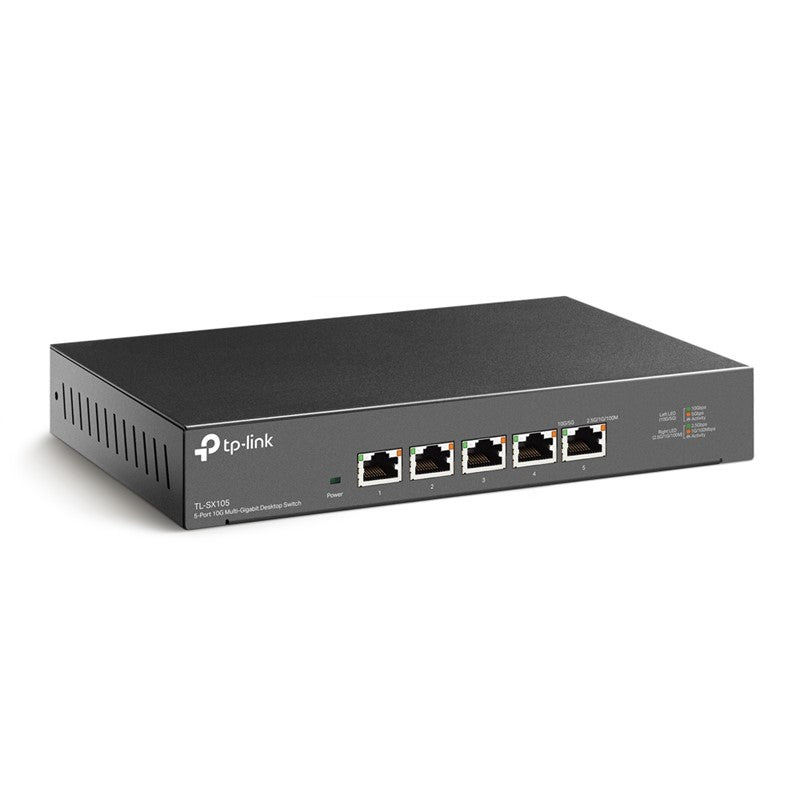

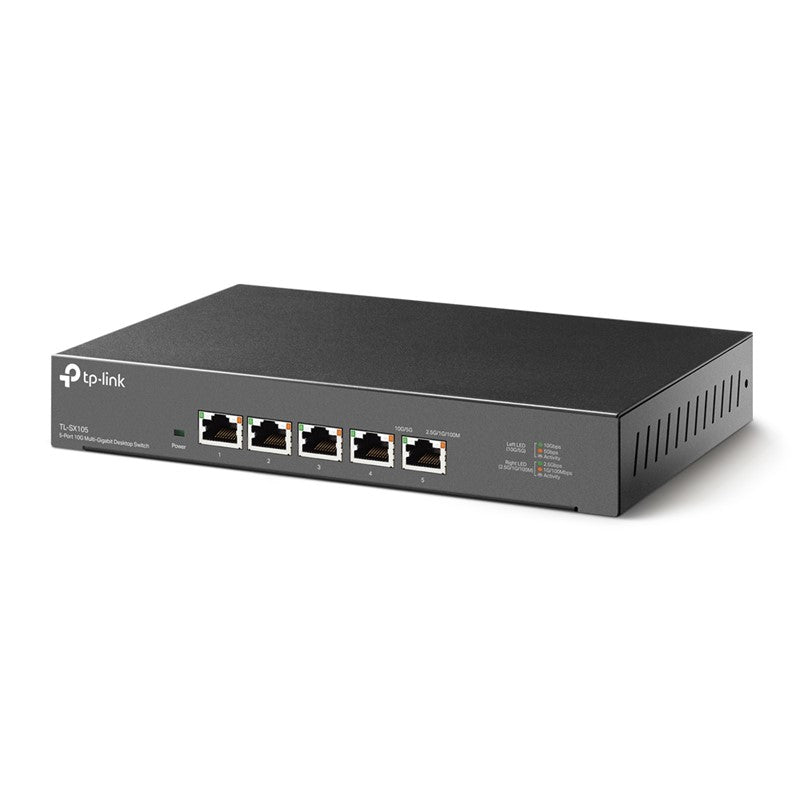

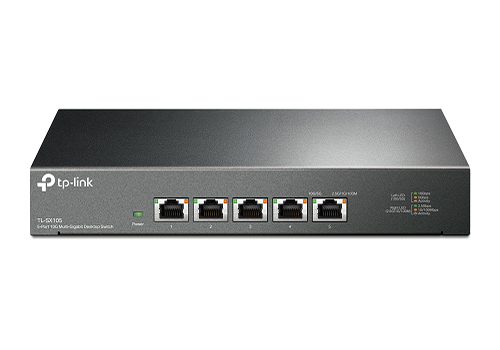

TP-Link TL-SX105 5-Port 10G Multi-Gigabit Desktop Switch

Five 10 Gbps Ports

5× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 100 Gbps of switching capacity.

Lightning-Fast Connections

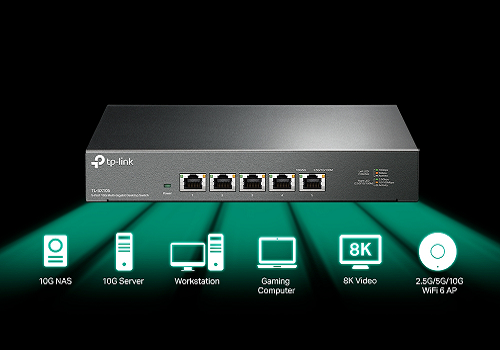

Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more.

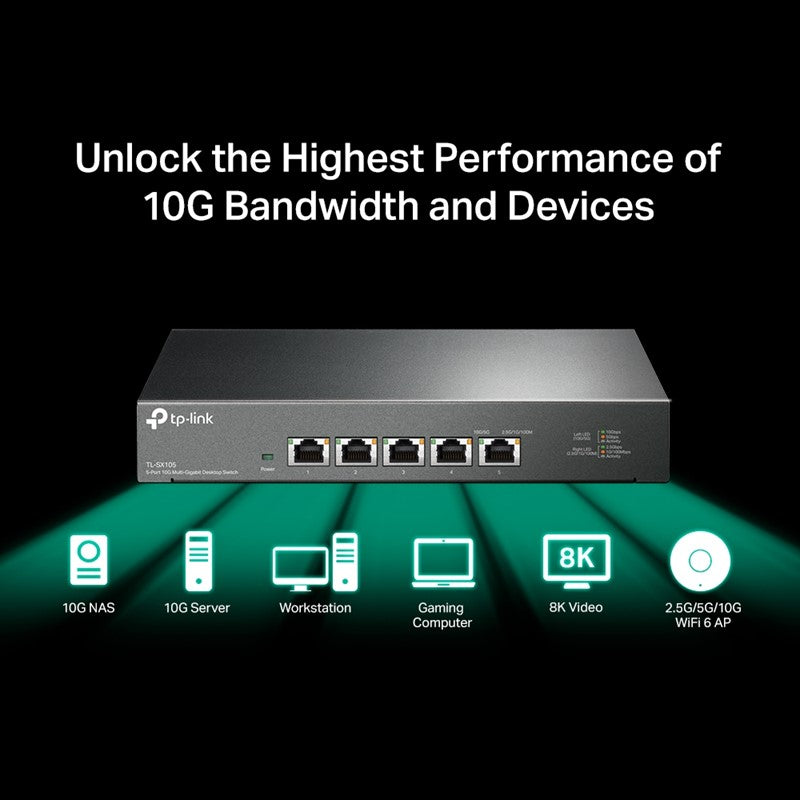

Unlock the Highest Performance of 10G/Multi-Gig Bandwidth and Devices

As the flagship 10G product, TL-SX105 is a 5-port 10G desktop switch, providing up to 100 Gbps of switching capacity.

Auto-negotiation 5-speed (100Mbps/1G/2.5G/5G/10G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices

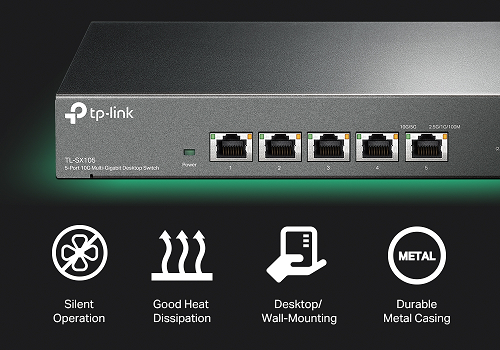

Silent Operation with Industry-Leading Fanless Design

The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business.

Just Plug and Play for Internet Access

A plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables.

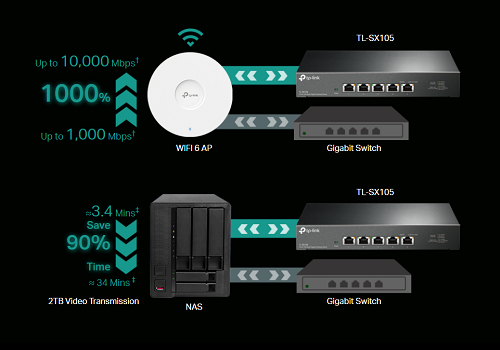

Unlock the Real WiFi 6

The best option to meet the full bandwidth potential of WiFi 6 access points with 10G wired connections.

Instant Transfer for Workstations

Immediately back up and store computer files to NAS storage with increased transfer speeds, never waste time.

Standards and Protocols

IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz

Interface

5× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity

Fanless

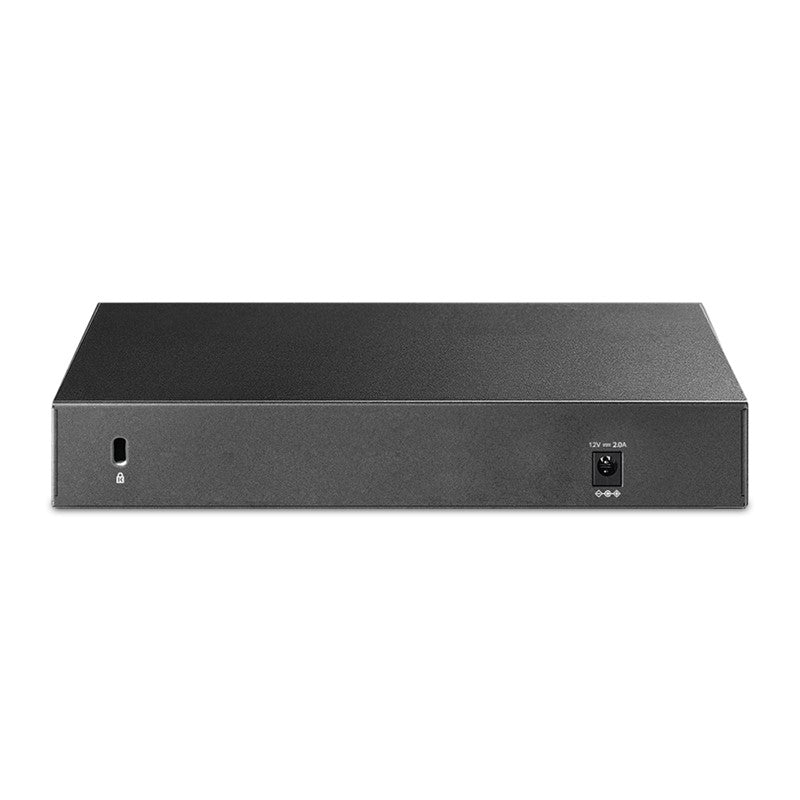

External Power Supply

External Power Adapter (Output: 12 VDC / 2.0 A)

LED Indicator

• System Power: 1
• Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port

Dimensions ( W x D x H )

8.9×5.2×1.4 in (226×131×35 mm)

Max Power Consumption

21.4 W

Performance

Switching Capacity

100 Gbps

Packet Forwarding Rate

74.4 Mpps

MAC Address Table

32 K

Packet Buffer Memory

2 Mb

Jumbo Frame

10 KB
